852D+ 2 in 1 hot air desoldering station / rework station

Features:

  • Multi-functional anti-static rework system, the brilliant tool for desoldering or reworking. Used with 900M type ESD soldering iron, every kind of rework job can be completed easily.
  • The soldering iron and hot air iron can be used together or separately
  • The airflow and temperature can be adjusted to fit QFP, PLCC, SOIC, BGA, etc.
  • Hot air station power on delay 10 seconds, air pump blowing, easy to increase temperature. Desoldering finished, auto blowing cooling system starts to work after power off, the airflow can be adjusted.
  • If the hot air desoldering station is not operated properly, the hot air iron is overheating; the auto-protecting function of heating element can protect itself, longer the life of the iron & nozzle.
  • Soldering iron output voltage 24V, avoid damaging PCB caused by power leak

hot air rework station

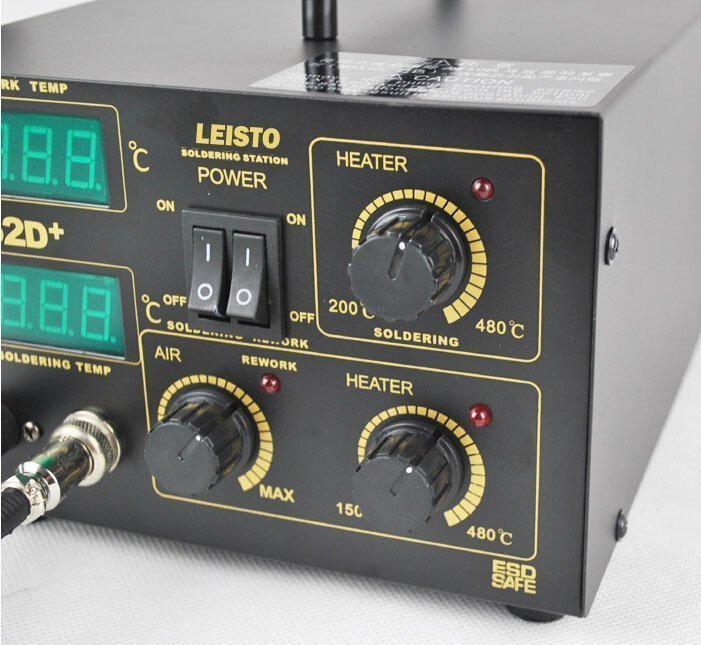

Rework Station Description

  1. Hot air gun holder
  2. Hot air gun hand piece
  3. Hot air gun nozzle 5mm
  4. Hot air gun nozzle 8mm
  5. Hot air gun nozzle 10mm
  6. Soldering iron temperature adjustment knob
  7. ESD soldering iron
  8. Metal soldering iron holder
  9. Hot air tube
  10. Soldering iron port
  11. Hot air gun blowing rate adjustment knob
  12. Hot air gun blowing rate adjustment knob
  13. Solder sponge
  14. Soldering iron temperature display
  15. Hot air gun temperature display

3 4

5

High performance double sided board, 1 year warranty

6

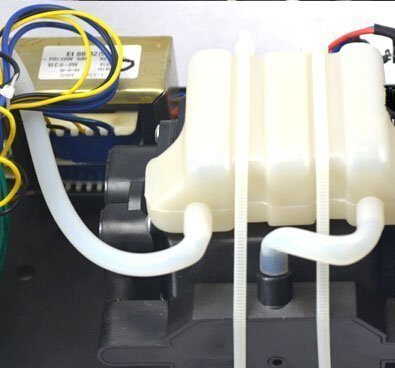

High performance air pump, more stable airflow

7

8

9

10

Specifications

Main station

  • Rated Voltage: AC 220V±10%  50Hz
  • Power: 600W (max)
  • Display: LED digital display
  • Temp. Adjusting Method: Analog adjusting
  • Temp. lock type: mechanical
  • Temp. stability: ±2℃ (static state)
  • Working Condition: 0~40℃, RH <80%
  • Storage Temperature: -20~80℃ , RH<80%
  • Power off types: normal, cold air delay power off, outage

Hot air gun

  • Voltage: AC 220V±10%  50Hz
  • Output power: 550W
  • Air pump: Diaphragm Type
  • Temp. range: 100℃~500℃
  • Air flow: 120L/min (max.)
  • Stand by & sleep: stop warming up, air blow delay, enter stand by status
  • Cold air: station blowing, stop warming up
  • Heating element: 550W, 220V

Soldering Iron

  • Working voltage: AC 26V±10%  50Hz
  • Output power: 50W
  • Temp. Range: 200℃~480℃
  • Soldering tip earth impedance: <2Ω
  • Soldering tip voltage to earth: <2mV
  • Replacement soldering tip: 900M series
  • Heating element: 50W 4 core ceramic heating element

Packing List

  • Main station – 1 unit
  • Hot air iron – 1 EA
  • Soldering iron – 1 EA
  • Iron holder – 1 EA
  • Power cable: 1 EA
  • Solder sponge: 1 piece
  • Manual: 1 EA
  • Nozzle: 6 pcs

Notice:

Take out transportation protect screw before use
