Japan Unix Soldering Tips

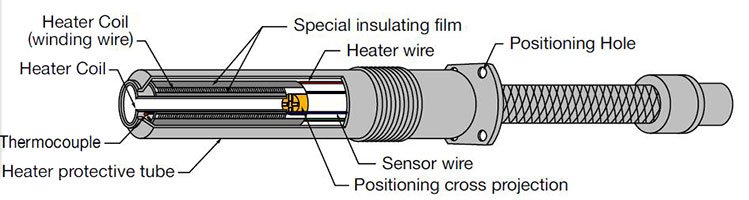

Replacement Soldering Tips for Japan Unix 1
Cross Heater
  • Unix replacement soldering tip – CROSS-BIT is high quality soldering iron tip designed for the use of automated soldering machine.
  • The UNIX soldering tip is fit for use with CROSS-HEATER.
  • Stainless steel cross structure attached in position (female side) to meet the positioning projection on the inside of the heating element(CROSS-HEATER).
  • Black chromium-plated tips.
  • Solder “tinned area” of tips plated with lead-free solder.
  • Available in numerous standard tip shapes, including point soldering and linear soldering.
  • The soldering Tips are available in three sizes, ranging from 100W to 300W, to meet specific heater capacities.
  • Custom tips tailored to the customer’s specifications can be designed and built in multiples of 10.

Size: mm

Statement:

The soldering tips showing below are made by LEISTO, substitute only; Not Japan Unix original

Cross Bit for 100AH-200S-79L Heater

p2d-n
P/NABCDE
P2D-N10.5mmφ28mm1mm
P3D-N1.50.5mmφ310mm1mm
P4D-N2.51.0mmφ4 12mm2mm
Japan Unix p2d-s
P/NABCD
P2D-S20.5mm8mm2mm
P25D-S2.50.8mm9mm2mm
P3D-S31mm10mm2mm
P4D-S41mm13mm2mm
P5D-S51mm15mm3mm
P6D-S61.1mm18.5mm3mm
JAPAN UNIX CROSS BIT
P/NABC
P2D-R21mm2mm
P25D-R2.51.1mm2mm
P3D-R31.2mm2mm
P4D-R41.5mm3mm
P5D-R51.5mm3mm
P6D-R62mm3mm
JAPAN UNIX SOLDERING TIP
P/NABC
P3PC-Sφ32mm10mm
P4PC-Sφ42.7mm13mm
P6PC-Sφ64mm18.5mm
P9PC-Sφ95.5mm23mm
JAPAN UNIX 200W CROSS BIT
P/NABCD
P12DVAP21.2mm1.5mm3mm
P13DVAP32.2mm1.5mm3mm
P16DVAP63.5mm2mm5mm
Japan Unix Soldering Tip
P/NA
P120BCPC2mm
P125BCPC2.5mm
P130BCPC3mm
Japan Unix Cross Bit 200W
P/NA
P10DCN-R1mm
P15DCN-R1.5mm
Japan Unix soldering tips
P/NA
P10DCN-L1mm
P15DCN-L1.5mm
Japan Unix slide soldering tip
Slide Soldering
P/NABCDEF
P6V08-180.8mm1.8mm2mm1.4mm0.8mm3.2mm
P1V08-180.8mm1.8mm2.8mm1.4mm0.7mm4mm
P1V10-201mm2mm3mm1.6mm0.8mm4mm
P1V10-231mm2.3mm3mm1.6mm0.8mm4mm
P1V12-231.2mm2,3mm3.2mm1.8mm0.9mm4mm
P1V12-281.2mm2.8mm3.2mm1.8mm0.9mm4mm

Above tips are standard tip size for use with 200W CROSS-HEATER (100AH-200S-79L). We provide also semi-custom and full custom tips, no extra charges.

Cross Bit L Series for 100BH-2510

Replacement Soldering Tips for Japan Unix 2
Cross Bit L Type

Individual replacement and waste reduction is made possible because this typefeatures a separate heater and iron tip. In addition, the L-shaped positioningmechanism prevents iron tips from being installed in the wrong direction.

Two types are available to choose from, a long type and a short type.

Unix cross bit

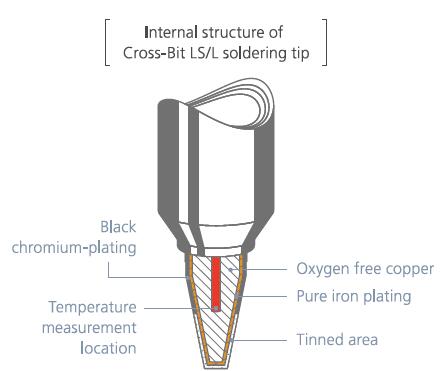

Cross Bit LS/L
Unix soldering tip 250W cross bit
Tinned on bottom and one side
ModelAB
L2D-N10.5
L3D-N1.50.5
L4D-N2.51
JAPAN UNIX SOLDERING BIT
Tinned on bottom and one side
ModelAB
L2D-S120.5
L25D-S12.50.8
L3D-S131
L4D-S141
L5D-S151
L6D-S161.1
UNIX Soldering Tip L*D-R
Tinned on bottom and both sides
ModelAB
L2D-R21
L25D-R2.51.1
L3D-R31.2
L4D-R41.5
L5D-R51.5
L6D-R62
Unix soldering tip L*D-R1
Tinned on bottom and one side
ModelAB
L2D-R121
L25D-R12.51.1
L3D-R131.2
L4D-R141.5
L5D-R151.5
L6D-R162
Unix cross bit 250W
Tinned on bottom and one side
ModelAB
L2PC-Sφ21.4
L3PC-Sφ32
L4PC-Sφ42.4
L6PC-Sφ64
L7PC-Sφ74.7
L9PC-Sφ95.5
Japan Unix soldering tip
Tinned on bottom and both sides
ModelAB
L25DC-R2.51.1
L30DC-R31.2
Unix slide soldering tip
Tinned on bottom, both sides and in slot
ModelABC
L1V10-20123
L1V10-2312.33
L1V12-231.22.33.2
L1V12-281.22.83.2
L6V08-180.81.82
L6V12-231.22.32.4
UNIX SOLDERING TIP WITH V-SLOT
Tinned on bottom and both sides
ModelAB

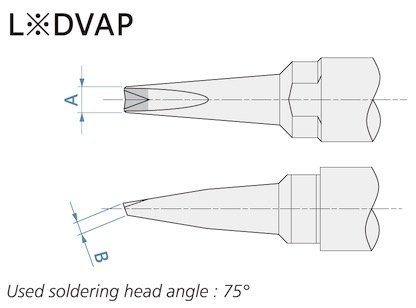

L12DVAP21.5
L13DVAP31.5
L16DVAP62

LS Cross Bit for Heater 100BHS-2510

Replacement Soldering Tips for Japan Unix 3
Cross Bit LS Type
Replacement Soldering Tips for Japan Unix 4
Tinned on bottom and both sides
ModelAB
LS2D-N10.5
LS3D-N1.50.5
Replacement Soldering Tips for Japan Unix 5
Tinned on bottom and one side
ModelAB
LS2D-N110.5
LS3D-N11.50.5
Replacement Soldering Tips for Japan Unix 6
Tinned on bottom and both sides
ModelAB
LS2D-R21
LS25D-R2.51.1
LS3D-R31.2
LS4D-R41.5
LS5D-R51.5
LS6D-R62
Replacement Soldering Tips for Japan Unix 7
Tinned on bottom and one side
ModelAB
LS2D-R121
LS25D-R12.51.1
LS3D-R131.2
LS4D-R141.5
LS5D-R151.5
LS6D-R162
Replacement Soldering Tips for Japan Unix 8
Tinned on bottom and both sides
Used soldering head angle : 75°
ModelAB
LS25DC-R2.51.1
LS3DC-R31.2
LS4DC-R41.5
LS5DC-R51.5
Replacement Soldering Tips for Japan Unix 9
Tinned on bottom and both sides
Used soldering head angle : 75°
ModelAB
LS20DCV21.1
LS30DCV31.4
Replacement Soldering Tips for Japan Unix 10
Tinned on bottom and one side
ModelAB
LS2D-S1φ20.5
LS25D-S1φ2.50.8
LS3D-S1φ31
LS4D-S1φ41
LS5D-S1φ51
LS6D-S1φ61.1
Replacement Soldering Tips for Japan Unix 11
Tinned on bottom and one side
Used soldering head angle : 90°
ModelAB
LS2PC-Sφ21.4
LS3PC-Sφ32
LS4PC-Sφ42.7
LS6PC-Sφ64
LS9PC-Sφ95.5
Replacement Soldering Tips for Japan Unix 12
Tinned on all circumference (0.5mm from edge), bottom and in slot
Used soldering head angle : 75°
ModelABC
LS1V08-180.81.82.8
LS1V12-231.22.33.2
LS1V12-281.22.83.2
LS1V15-301.533.5
LS1V18-331.83.33.8
