Soldering Robot Tips
————————– Leisto Replacement tips Equivalent to Quick 910， 911， 911G Series
- High thermal capacity soldering robot tips, black chromium plating, super long usage life
- Various types to choose, the tips can be custom made according to actual working applications.
Replacement Soldering Robot Tips P/Ns
PC  |
A | B | |
| *** – 10PC | ø1.0 | 0.5 | |
| *** – 13PC | ø1.3 | 0.65 | |
| *** – 16PC | ø1.6 | 0.8 | |
| *** – 20PC | ø2.0 | 1 | |
| *** – 24PC | ø2.4 | 1.2 | |
| *** – 30PC | ø3.0 | 1.5 | |
| *** – 40PC | ø4.0 | 2 |

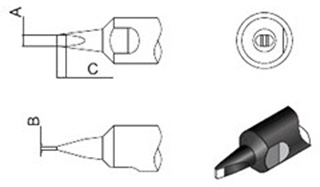

D
 |
A | B | C | |
| *** – 16D | ø1.6 | 0.6 | 1.5 | |
| *** – 20D | ø2.0 | 0.8 | 1.5 | |
| *** – 24D | ø2.4 | 0.8 | 1.5 | |
| *** – 30D | ø3.0 | 1 | 2 | |
| *** – 40D | ø4.0 | 1.2 | 2.5 |

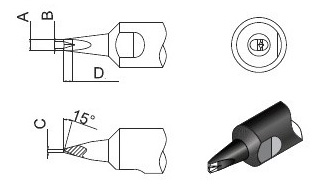

DV1
 |
A | B | C | D | |
| *** – 16DV1 | ø1.6 | 1 | 0.6 | 1.5 | |
| *** – 20DV1 | ø2.0 | 1.2 | 0.8 | 1.5 | |
| *** – 24DV1 | ø2.4 | 1.4 | 0.8 | 1.5 | |
| *** – 30DV1 | ø3.0 | 1.6 | 1 | 2 | |
| *** – 40DV1 | ø4.0 | 2 | 1.2 | 2.5 |

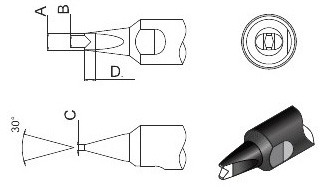

DV2
 |
A | B | C | D | |
| *** – 16DV2 | ø1.6 | 1 | 0.6 | 1.5 | |
| *** – 20DV2 | ø2.0 | 1.2 | 0.8 | 1.5 | |
| *** – 24DV2 | ø2.4 | 1.4 | 0.8 | 1.5 | |
| *** – 30DV2 | ø3.0 | 2.2 | 1 | 2 | |
| *** – 40DV2 | ø4.0 | 3 | 1.2 | 2.5 |

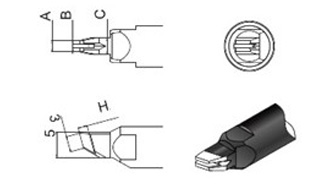

N
 |
A | B | C | H | |
| *** – 22N08H18 | 2.2 | 0.8 | 3.2 | 1.8 | |
| *** – 28N08H15 | 2.8 | 0.8 | 3.6 | 1.5 | |
| *** – 30N10H20 | 3.0 | 1 | 4 | 2 | |
| *** – 32N12H23 | 3.2 | 1.2 | 4 | 2.3 | |
| *** – 32N12H28 | 3.2 | 1.2 | 4 | 2.8 |
Soldering Robot Tips Model Details
910 Series
910-10PC 910-13PC 910-16PC 910-20PC 910-24PC 910-30PC 910-40PC
910-16D 910-20D 910-24D 910-30D 910-40D
910-16DV1 910-20DV1 910-24DV1 910-30DV1 910-40DV1
910-16DV2 910-20DV2 910-24DV2 910-30DV2 910-40DV2
911 Series
911-10PC 911-13PC 911-16PC 911-20PC 911-24PC 911-30PC 911-40PC
911-16D 911-20D 911-24D 911-30D 911-40D
911-16DV1 911-20DV1 911-24DV1 911-30DV1 911-40DV1
911-16DV2 911-20DV2 911-24DV2 911-30DV2 911-40DV2
911G Series
911G-10PC 911G-13PC 911G-16PC 911G-20PC 911G-24PC 911G-30PC 911G-40PC
911G-16D 911G-20D 911G-24D 911G-30D 911G-40D
911G-16DV1 911G-20DV1 911G-24DV1 911G-30DV1 911G-40DV1
911G-16DV2 911G-20DV2 911G-24DV2 911G-30DV2 911G-40DV2
