QUICK is China soldering equipment, desoldering equipment manufacturer & supplier, offer soldering station, rework station, BGA rework system, lead free solder pot and Robot Series.

Replacement soldering iron tips for Quick lead-free soldering station 203ESD, 203H ESD, 204ESD, 204H ESD, 203D ESD,

Quick 300 series soldering iron tips.

200 Series Tips

Chisel, Shape C

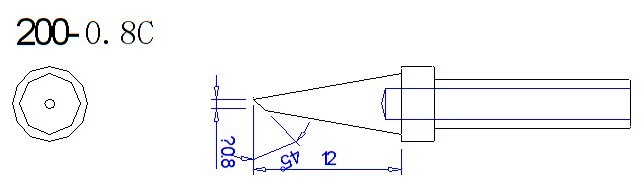

quick 200-0.8c200-0.8C Soldering Tip Tip length: 12mm, Diameter: 0.8mm Chisel Angle: 450

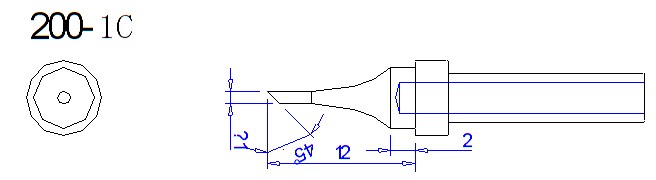

200-1c soldering tip200-1C Soldering Tip Tip Length: 12mm, Diameter: 1mm Chisel Angle: 450

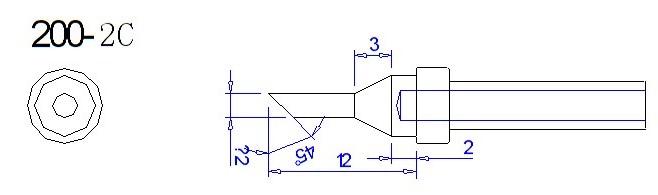

200-2C soldering tip200-2C Soldering Tip Tip Length: 12mm, Diameter: 2mm Chisel Angle: 450

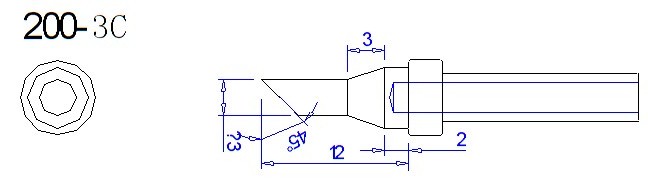

200-3C soldering tip200-3C Soldering Tip Tip Length: 12mm, Diameter: 3mm Chisel Angle: 450

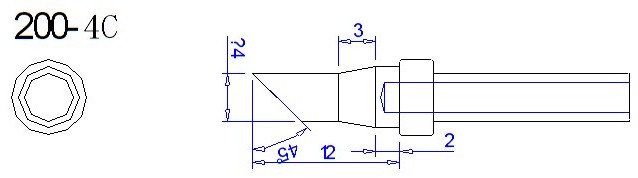

200-4C soldering tip200-4C Soldering Tip Tip Length: 12mm, Diameter: 4mm Chisel Angle: 450
Screw Driver, Shape D

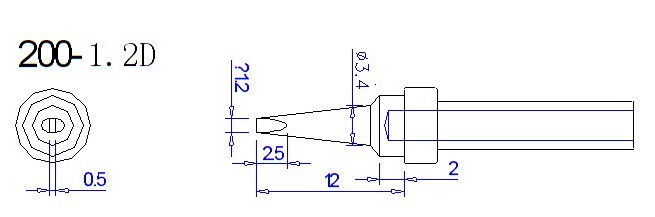

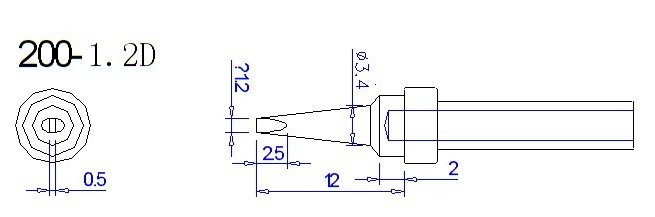

200-1.2D soldering tip200-1.2D Soldering Tip Length: 12mm, Width: 1.2mm Height of pre-tinned part: 2.5mm

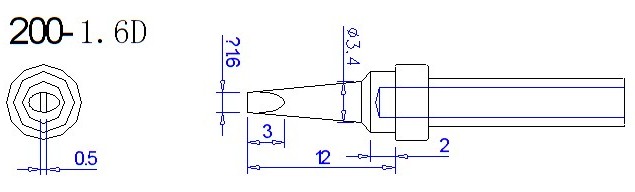

200-1.6D soldering tip200-1.6D Soldering Tip Length: 12mm, Width: 1.6mm Height of pre-tinned part: 3mm

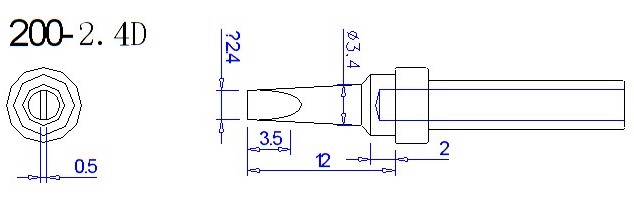

200-2.4D soldering tip200-2.4D Soldering Tip Length: 12mm, Width: 2.4mm Height of pre-tinned part: 3.5mm

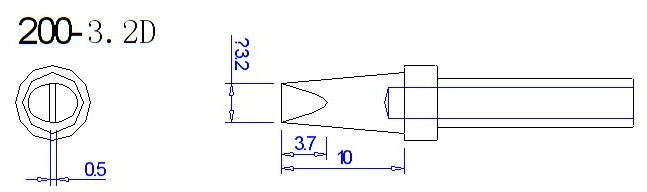

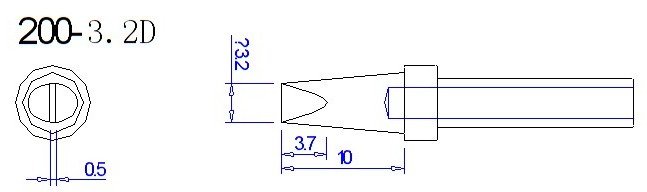

200-3.2D soldering tip200-3.2D Soldering Tip Length: 10mm, Width: 3.2mm Height of pre-tinned part: 3.7mm

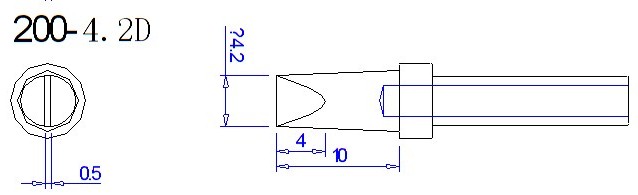

200-4.2D soldering tip200-4.2D Soldering Tip Length: 10mm, Width: 4.2mm Height of pre-tinned part: 4mm
All Round Type, Shape B

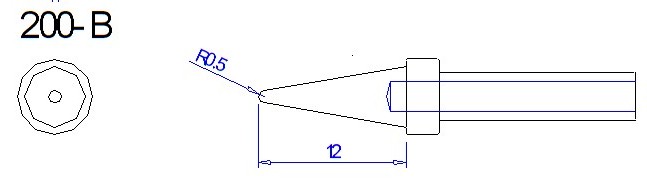

200-B Soldering Tip200-B Soldering Tip Tip Length: 12mm Tip Diameter: 0.5mm

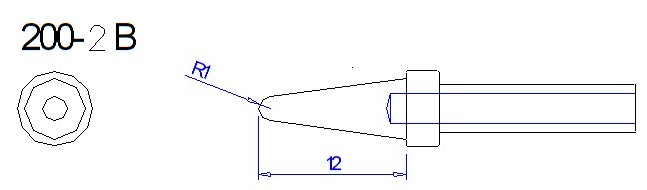

200-2B Soldering Tip200-2B Soldering Tip Tip Length: 12mm Tip Diameter: 1mm
Bent, Shape H, Shape J
200-J Soldering Tip200-H Soldering Tip, Bent Tip Length: 7.5mm+15mm Bent Angle: 25° Tip Diameter: 1.2mm Height of pre-tinned part: 3.5mm

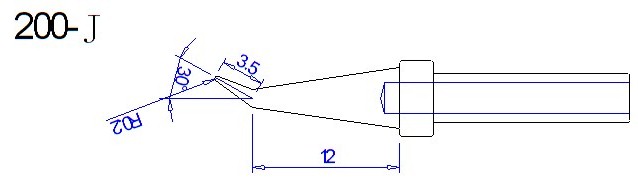

200-J Soldering Tip, Bent Tip Length: 3.5mm+12mm Bent Angle: 30° Tip Diameter: 0.2mm
Shape I

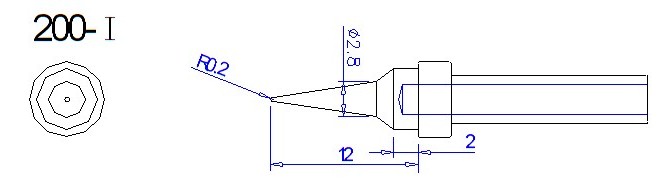

200-I Soldering Tip200-I Soldering Tip Tip Length: 12mm Tip Diameter: 0.2mm
200-LI Soldering Tip Tip Length: 17mm Tip Diameter: 0.2mm
Knife, Shape K

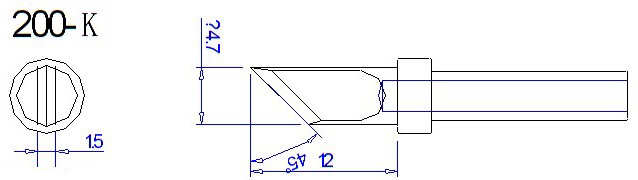

200-K Soldering Tip200-K Soldering Tip, Knife Tip Length: 12mm, Width: 4.7mm

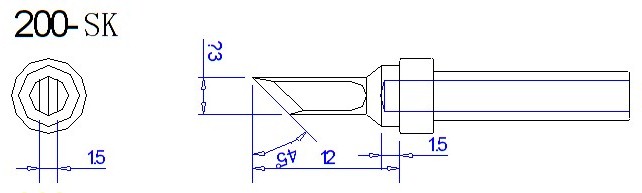

200-SK Soldering Tip200-SK Soldering Tip, Knife Tip Length: 12mm, Width: 3mm
Recommended Posts
Showing 3 comments
  • Jane Guild
    Reply

    Will these tips work on a weller 100 soddering iron. Do ythey attach to a post

    • Leisto
      Reply

      NO, only compatible with QUICK related soldering irons.

  • David Georgievich Datiev
    Reply

    Those tips well working on Atten AT315D inductional station. Thanks!!!
