Auto-feed soldering station

Leisto F3100 Auto-feed Soldering Station

Hands free with the auto feed soldering station. Best for soldering electronic connector, LED string lights, video / audio cable plug, headphone cable, PC data cable, small PCB or electronic component, etc.

It is a headache to soldering things with traditional soldering station – solder wire by one hand, soldering iron by the other hand, soldered thing by “3rd” hand. The operators need to be trained well to work skilled. Free your hands now, feed solder wire with foot pedal. The operators can do soldering easily and increase work efficiency.

Features of self-feeding soldering station

  • Automatic feeding solder wire with foot pedal
  • Feed the solder quantificationally, reduce solder waste
  • Solder wire will be retracted slighted while a solder joint finished, to keep the distance between soldering tip and solder; otherwise will cause solder waste
  • The temperature can be adjusted between 200 °C to 480°C
  • Hands-free soldering, increase work efficiency up to 50%
  • Driven by synchronous motor, tooth form metal tin guide wheel, ensure the stability of solder feed speed, keep same solder joints
  • Temperature adjusted by analog knob
  • Compatible solder wire diameter: 0.8 mm, 1.0 mm, 1.2 mm

Auto-feed soldering station

Examples of hands-free soldering

Auto-feed soldering station

Or soldering with traditional type

Auto-feed soldering station

Analog knobs to set tin feed quantity, tin retract quantity, feed speed, continuous feeding / step feeding and temperature

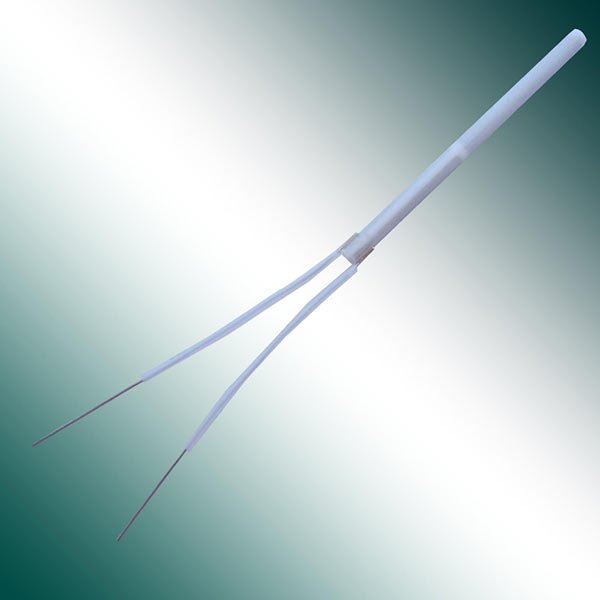

Heating element

Specifications of Auto Feed Soldering Station

  • Temperature: 200 °C to 480°C
  • Voltage: 110V / 220V
  • Solder wire diameter: 0.8 mm, 1.0 mm, 1.2 mm
  • Power:
    F3100A: 50W, used with 900M series tips
    F3100B: 70W, used with 900L series tips
    F3100C: 80W, used with A1023 series tips
  • Solder feed interval time: 0~2.7s
  • Solder feed speed: 2.7 mm/s to 27 mm/s
  • Solder retract time: 0~0.9s
  • Solder fee type:
    Auto: 1~9
    Manual: 0
  • Temperature Stability: ±2°C
