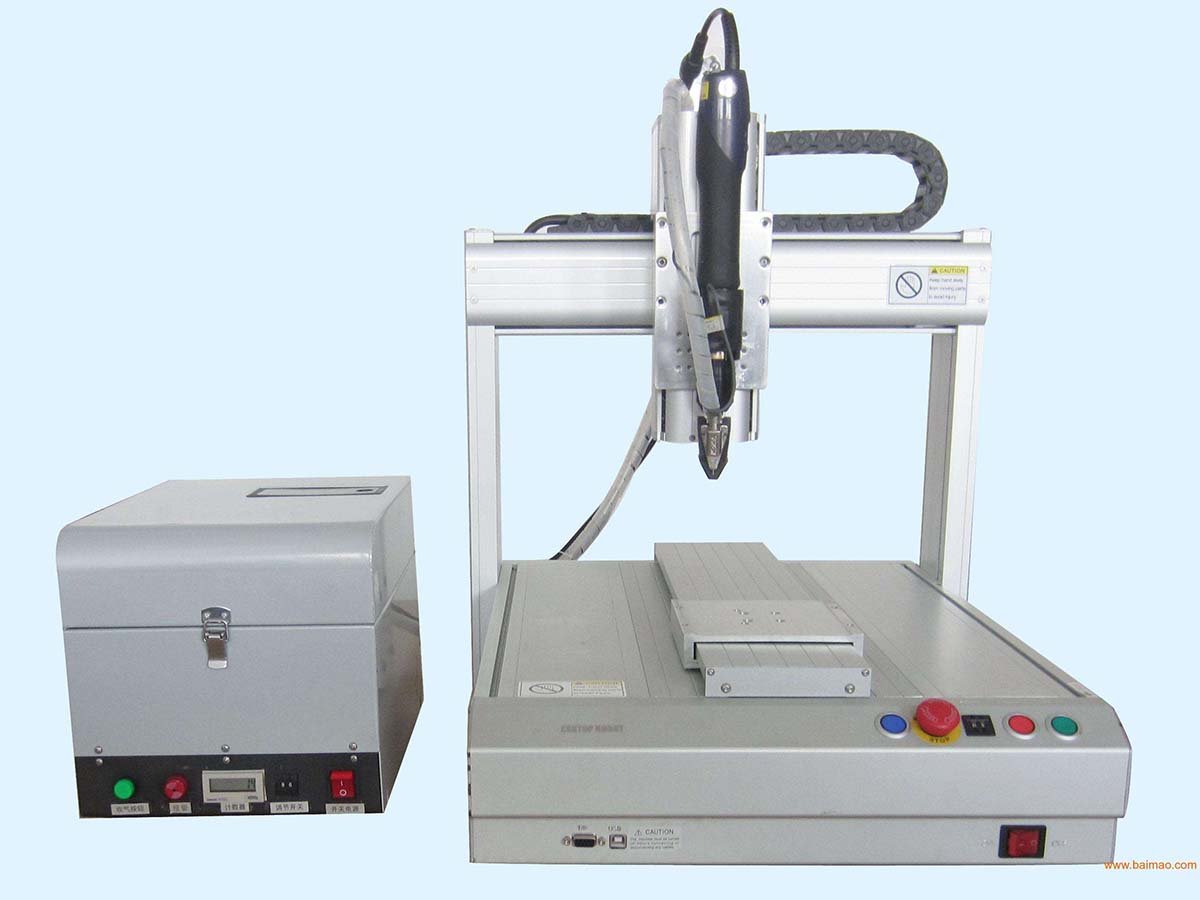

The 3 axis desktop automatic screw fastening robot can increase work efficiency rapidly, it can be connected with SCARA to be working fully automatic.
We provide 2 options due to different application –
- belt driven with step motor
- ball screw driven with servo motor
Screw pick up method: air blow type, it requires to be used with air compressor.
The product cost can be different according to customer budget, we can use lower cost brand of screwdriver & air cylinder.
Specifications of screw fastening robot
| Item | Basic | Premium |
|---|---|---|
| Desktop | standard 3 axis desktop | standard 3 axis desktop |
| Motor | Step motor | Servo motor |
| Driven | belt driven | Ball screw |
| Screw feeder | patented screw feeder | patented screw feeder |
| Screwdriver | China brand | HIOS |
| Air cylinder | China brand | SMC |
List of screw robot models
| Model | 4410-TP1 | 3310-TP1 | 2210-TP1 | 1110-TP1 | |
| Power | 100~240V AC | ||||
| Screw pick up type | magnetic type, air blow, air suction | ||||
| Motor driven axis | 3 axis | ||||
| working area mm | X | 400 | 300 | 200 | 100 |
| Y | 400 | 300 | 200 | 100 | |
| Z | 100 | 100 | 100 | 100 | |
| working speed mm/sec | X | 0.1~500 | 0.1~200 | 0.1~200 | 0.1~200 |
| Y | 0.1~800 | 0.1~800 | 0.1~200 | ||
| Z | 0.1~300 | 0.1~300 | 0.1~300 | ||
| repeat positioning accuracy | ±0.02 mm | ||||
| programming file capacity | max. 999 files, single file max. 60,000 points | ||||
| Tooling file capacity | max. 255 files | ||||
| dimension mm | 780*730*630 | 680*805*605 | 520*620*555 | 325*325*400 | |
Demo Videos
Screw fastening robot, 2 Y-axis, single self-feeding screwdriver
Screw fastening robot, 2 Y-axis, double self-feeding screwdriver
