NSR Series Automatic Screw Feeder

Quicher NSR Series Electric Automatic Screw Feeder

For Automatic operation

Quicher NSR Series screw dispenser is compact and space saving.

Rail replaceable for M1.0 to M3.0 screws.

With installation of Nejikura, the large stock of screws can be loaded. It is equipped with an overload backstop protection circuit.

Features:

– Pick-up bay allows for vacuum pick-up via robot screwdriver.
– Screw detect sensor at pick-up bay alerts the robot if the screw is not available.

[table tablesorter=”0″]

Part Number, Screw Diameter (mm), Screw Length (mm), Rail

NSR-10 / NSR1.0, 1.0, 1.6~10, SR10

NSR-12 / NSR1.2, 1.2, 1.8~10, SR12

NSR-14 / NSR1.4, 1.4, 2.0~10, SR14

NSR-17 / NSR1.7, 1.7, 2.3~10, SR17

NSR-20 / NSR2.0, 2.0, 2.6~20, SR20

NSR-23 / NSR2.3, 2.3, 2.9~20, SR23

NSR-26 / NSR2.6, 2.6, 3.2~20, SR26

NSR-30 / NSR3.0, 3.0, 3.6~20, SR30

[/table]

Dimensions: 123W*181D*145H (mm), Power AC110/50Hz or AC220V/60Hz

Example screw types:

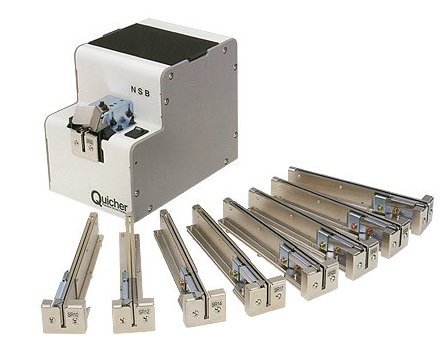

Replacement rail
