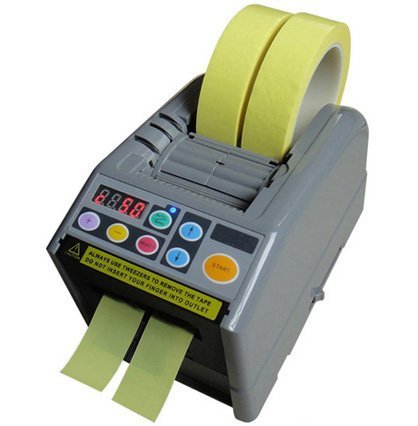

ZCUT-9 Automatic Tape Dispenser

ZCUT-9 automatic tape dispenser assembles with 2 sensors which make cutting 2 tape rolls available. It has safety guard system to prevent activation of the cutter when foreign objects are present (fingers, tools, etc.)

Fit for cutting adhesive tape and non-adhesive tape.

• Fit any size of tapes without bobbins.core.
• Cut length from 5 mm to 999 mm.
• Safety guard to prevent accidental injury.
• Memory function enables to save six different lengths, the operators can switch the preset length and begin to feed & cut automatically.
• Enable to cut Protection Film, Copper Foil, Aluminum Foil, Insulation material and more.
• Enable to hold the film or tape by using Flexible Tape Support.
• Preset and Loop counter functions.
• Dual sensor enables to cut 2 rolls at a time.

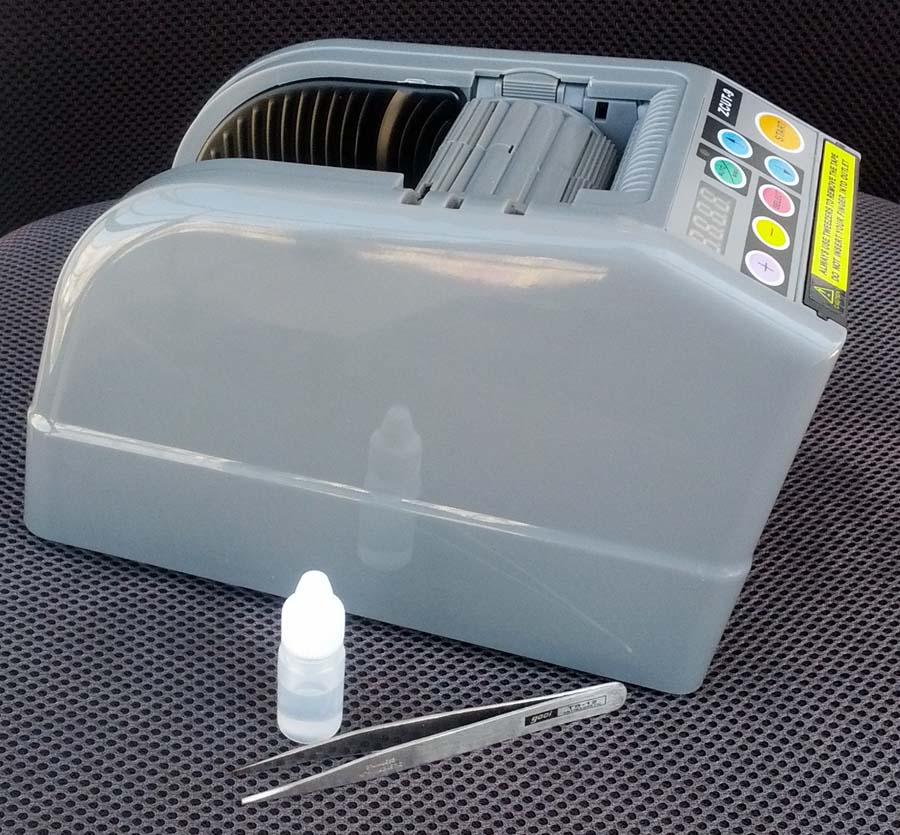

• Build-in Tweezers, Oil, and Separator.

Specifications

[table]

Accept Tape Width, Tape Cutting Length, Accept Tape Inner Diameter, Accept Tape Outer Diameter

6~60 mm, 5~999 mm, Any, 300 mm

[/table]

Dimension: 116(W)*140(D)*213(H)mm / Power Consumption: 40W / Voltage: AC220V/50Hz or AC110V/60Hz / Net Weight: 2.8 KGS
