hakko 900m

* The shape of Nipple changes by soldering irons.
* Compatible with lead-free solder.

900M Soldering Tips
900M Series Solder Tip

900M soldering tips order options:

LEISTO is one of the soldering tip manufacturer in China, we have 10+ years experience, our products are sold to many international corporations in Europe, America and Southeast Asia.

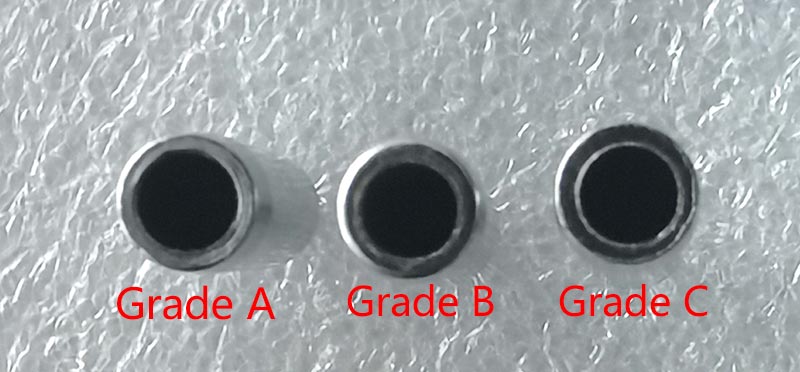

Generally speaking, 900M soldering tips have 3 quality levels in the market, say A, B and C. Grade A is most closed to the original soldering tip, no matter the dimension or heating up / temperature recovery performance; Grade B is a little worse than Grade A but can be suitable for most of the soldering works.

Grade C is much too bad, we don’t suggest to use.

Quality Level Difference
Grade A fast heat transfer / small temperature difference
Grade B suitable for high temperature soldering (over 400℃)

900M Soldering Tip Models / Shape

Shape BCM/CM


This type differs from Shape BC by the addition of a hollow to its cut face, providing high solder retention capability. lt is used for drag soldering and correction of bridging.

900m-t-2CM
900M-T-2CM Shape-2C with indent
900M-T-3CM
900M-T-3CM Shape-3C with indent

Shape BC/C


This type has a shape like a cone or column cut at a slant, which allows users to select the cut surface sizedepending on the workpiece.

lt is used for drag soldering and pre-tinning of lead wires.

900M-T-1C
900M-T-1CF Shape-1C
* Tinned cut surface only
900M Soldering Tips 3
900M-T-2BCZ Shape-2BC(Z) *
* Long Life Type
900M Soldering Tips 5
900M-T-2C Shape-2C
900M Soldering Tips 5
900M-T-2CF Shape-2C
*Tinned cut surface only
900M Soldering Tips 9
900M-T-3BCZ Shape-3BC(Z)
* Long Life Type
900M Soldering Tips 11
900M-T-3C Shape-3C
900M Soldering Tips 11
900M-T-3CF Shape-3C
* Tinned cut surface only
900M Soldering Tips 15
900M-T-4C Shape-4C
900M Soldering Tips 15
900M-T-4CF Shape-4C
* Tinned cut surface only
900M Soldering Tips 19
900M-T-S10 Shape-S10
* Tinned cut surface only
900M Soldering Tips 21
900M-T-S11 Shape-S11
* Tinned cut surface only

Shape B


All-round type which can be used from any direction and is easy to hold at any position. Possible to solder any surface from small to large.

900M Soldering Tips 23
900M-T-B Shape-B
900M Soldering Tips 23
900M-T-BF2 Shape-B Tinned a distance of 2mm from the end of the tip
900M Soldering Tips 23
900M-T-BZ Shape-B(Z)
* Long Life Type
900M Soldering Tips 29
900M-T-LB Shape-LB
900M Soldering Tips 31
900M-T-SB Shape-SB
900M Soldering Tips 33
900M-T-S4 Shape-S4

Shape D


This type has a shape like a flat-blade screwdriver and is capable of soldering by applying the tip in 2 ways: line and face.

The width (size of tip) suitable for the workpiece can be selected, and it can be used for any soldering work.

900M Soldering Tips 35
900M-T-0.8D Shape-0.8D
900M Soldering Tips 37
900M-T-1.2D Shape-1.2D
900M Soldering Tips 39
900M-T-1.2LD Shape-1.2LD
900M Soldering Tips 41
900M-T-1.6D Shape-1.6D
900M Soldering Tips 43
900M-T-2.4D Shape-2.4D
900M Soldering Tips 45
900M-T-3.2D Shape-3.2D
900M Soldering Tips 47
900M-T-2LD Shape-2LD
900M Soldering Tips 49
900M-T-S3 Shape-5.2D

Shape I


This type has a thin conical end and is an ultrafine tip which is best suited for soldering at narrow pitches, etc.

It is the best for soldering micro components such as 0603, etc. and for repairing high-density-mounting P.W.Bs. such as in cellular phones, etc.

900M Soldering Tips 51
900M-T-I Shape-I
900M Soldering Tips 53
900M-T-SI Shape-SI

Shape K


This type has a shape like a knife and is capable of soldering by applying the tip in 3 ways: line, face and point. It is used for soldering at narrow pitches, correction of bridging and drag soldering.

900M Soldering Tips 55
900M-T-K Shape-K

Shape H


This type differs from Shape J by cutting the tip end. It is suitable for drag soldering and correction of bridging.

* Not available for correcting bridging by standing the tip end like Shape J.

900M Soldering Tips 57
900M-T-1.8H Shape-1.8H
900M Soldering Tips 59
900M-T-H Shape-H

Shape R


This type has a groove at the tip end. It is suitable for removing ICs.

900M Soldering Tips 61
900M-T-R Shape-R
900M Soldering Tips 63
900M-T-RT Shape-RT

900M Soldering Tips 65Click the button above the tab to download catalog.

900M solder tip quality
900M solder tip quality
