T12 soldering tips are used with FX-951/FX-950/FX-952/FM-203/FM-204/FM-206 Soldering Station, compatible with FX-9501, FM-2028 & FM-2027 soldering iron.

* T12 series soldering iron tips are used in Japan, Oceania, Asia & Other countries, while T15 series soldering tips are used in North America & EU.
We don’t supply T15 soldering tip, use T12 series as alternative.

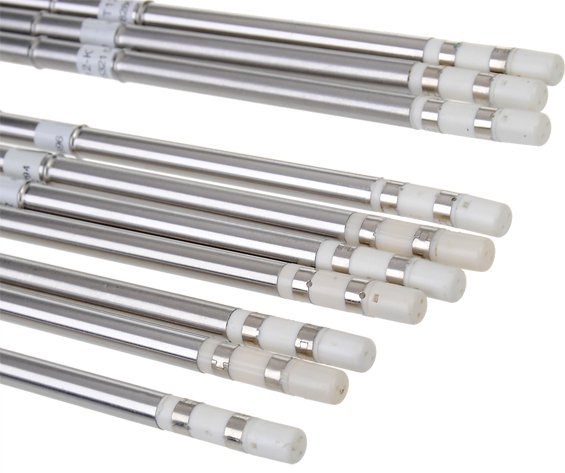

T12 Soldering Tips
T12 soldering tip shapes
T12 Soldering Tips
T12 soldering tip terminal

With 85 types to meet every different soldering works, here only shows the types we can supply.
Lead time: most of the models listed below can be sent in 3-5 working days.

Shape B Soldering Tip


All-round type which can be used from any direction and is easy to hold at any position.
Possible to solder any surface from small to large.

T12 Soldering Tip 7
T12-B Shape-B
T12 Soldering Tip 9
T12-B2 Shape-0.5B
T12 Soldering Tip 11
T12-B3 Shape-0.7B
T12 Soldering Tip 13
T12-B4 Shape-0.4B
T12 Soldering Tip 15
T12-BL Shape-BL
T12 Soldering Tip 17
T12-WB2 Shape-0.5WB
* Heavy Duty Type

Shape BC/BCF, C/CF


This type has a shape like a cone or column cut at a slant, which allows users to select the cut surface size depending on the workpiece. It is used for drag soldering and pre-tinning of lead wires.

T12 Soldering Tip 19
T12-BC1 Shape-1BC
T12 Soldering Tip 21
T12-BC2 Shape-2BC
T12 Soldering Tip 23
T12-BC3 Shape-3BC
T12 Soldering Tip 19
T12-BCF1 Shape-1BC
Tinned cut surface only
T12 Soldering Tip 21
T12-BCF2 Shape-2BC
Tinned cut surface only
T12 Soldering Tip 23
T12-BCF3 Shape-3BC
Tinned cut surface only
T12 Soldering Tip 31
T12-C08 Shape-0.8C
For narrow pitch with tall chips around.
T12 Soldering Tip 33
T12-C1 Shape-1C
T12 Soldering Tip 35
T12-C4 Shape-4C
T12 Soldering Tip 35
T12-CF4 Shape-4C
Tinned cut surface only

Shape BCM


This type differs from Shape BC by the addition of a hollow to its cut face, providing high solder retention capability. It is used for drag soldering and correction of bridging.

T12 Soldering Tip 39
T12-BCM2 Shape-2BC
Bevel with indent
T12 Soldering Tip 41
T12-BCM3 Shape-3BC
Bevel with indent

Shape D


This type has a shape like a flat-blade screwdriver and is capable of soldering by applying the tip in 2 ways: line and face.

The width (size of tip) suitable for the workpiece can be selected, and it can be used for any soldering work.

T12 Soldering Tip 43
T12-D08 Shape-0.8D
T12 Soldering Tip 45
T12-D12 Shape-1.2D
T12 Soldering Tip 47
T12-D16 Shape-1.6D
T12 Soldering Tip 49
T12-D24 Shape-2.4D
T12 Soldering Tip 51
T12-D4 Shape-4D
T12 Soldering Tip 53
T12-D52 Shape-5.2D
T12 Soldering Tip 55
T12-DL08 Shape-0.8DL
T12 Soldering Tip 57
T12-DL12 Shape-1.2DL
T12 Soldering Tip 59
T12-DL32 Shape-3.2DL
T12 Soldering Tip 61
T12-DL52 Shape-5.2DL
T12 Soldering Tip 63
T12-WD08 Shape-0.8WD
* Heavy Duty Type
T12 Soldering Tip 65
T12-WD12 Shape-1.2WD
* Heavy Duty Type
T12 Soldering Tip 67
T12-WD16 Shape-1.6WD
* Heavy Duty Type
T12 Soldering Tip 69
T12-WD52 Shape-5.2WD
* Heavy Duty Type

Shape I


This type has a thin conical end and is an ultrafine tip which is best suited for soldering at narrow pitches, etc. It is the best for soldering micro components such as 0603, etc. and for repairing high-density-mounting P.W.Bs. such as in cellular phones, etc.

T12 Soldering Tip 71
T12-I Shape-I
T12 Soldering Tip 73
T12-IL Shape-IL
T12 Soldering Tip 75
T12-ILS Shape-ILS
T12 Soldering Tip 77
T12-WI Shape-WI
* Heavy Duty Type

Shape J


This type differs from Shape B and I by bending the tip end and is capable of soldering by applying the tip in 2 ways: face and point.
It is used for drag soldering and correction of bridging.

T12 Soldering Tip 79
T12-J02 Shape-0.2J
T12 Soldering Tip 81
T12-JL02 Shape-0.2JL

Shape K


This type has a shape like a knife and is capable of soldering by applying the tip in 3 ways: line, face and point. It is used for soldering at narrow pitches, correction of bridging and drag soldering.

T12 Soldering Tip 83
T12-K Shape-K
T12 Soldering Tip 85
T12-KF Shape-KF
T12 Soldering Tip 87
T12-KR Shape-KR
For drag soldering for right-handed.
T12 Soldering Tip 89
T12-KU Shape-KU

SMD Type

The special size is not always in stock, please inquiry first.

T12-1201 ,T12-1202 ,T12-1203 ,T12-1204 ,T12-1205 ,T12-1206 ,T12-1207 ,T12-1208 ,T12-1209

T12-1001 ,T12-1002 ,T12-1003 ,T12-1004 ,T12-1005 ,T12-1006 ,T12-1007 ,T12-1008 ,T12-1009 ,T12-1010

T12-1401 ,T12-1402 ,T12-1403 ,T12-1404 ,T12-1405 ,T12-1406

* Most of iron tips can be shipped within 1 week

* Please send inquiry before order SMD type tips, they may not available in stock

* Please send inquiry before order SMD type tips, they may not available in stock

T12 Soldering Tip 91 Click to download catalog – T12 Soldering Tips.

Related Product

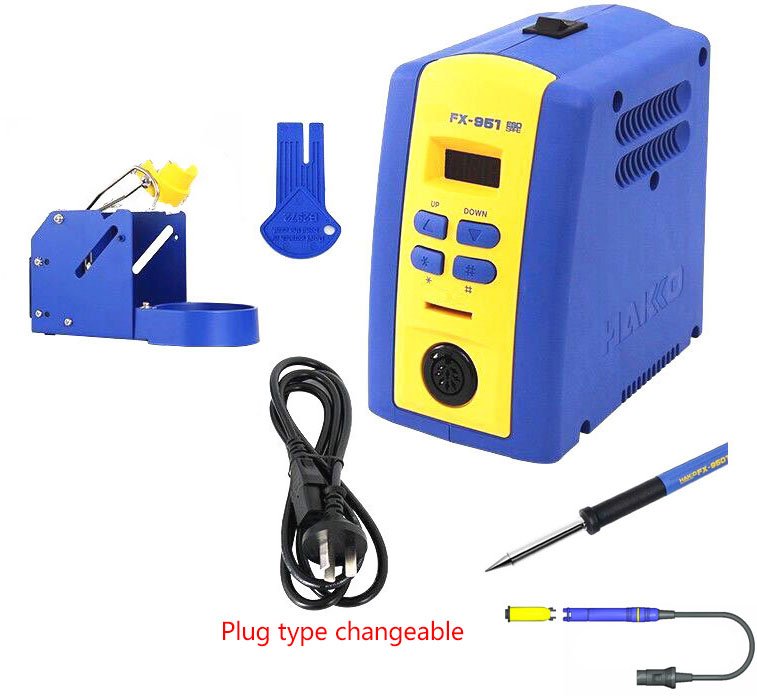

fx-951 soldering station
