Soldering Tip Cartridges for Apollo Seiko

Best Replacement Iron Cartridge for Apollo Seiko Robots

Leisto has rich experience on producing high quality replacement robotic soldering tips, the products’ quality is stable and have good thermal conductivity & temperature recovery ability. The tips have been tested and approved by dozens of corporations / factories around the world.

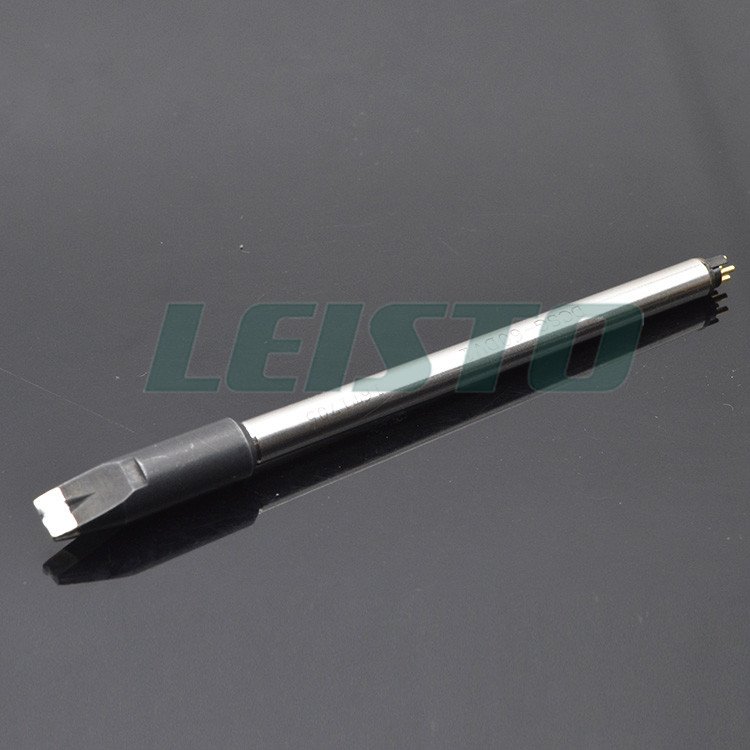

We produce and promote high quality replacement soldering tips forApollo Seiko robots, available types: DCS, DCN, TS, TM and quick change type (DCx) series tips.

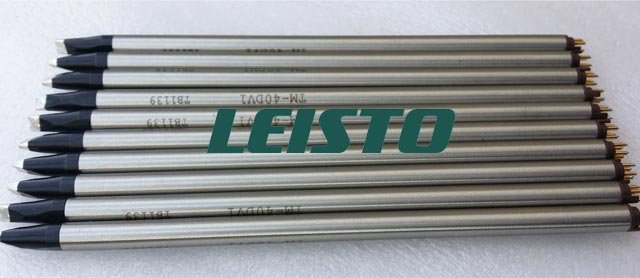

  • TM iron cartridge: 145mm length for AC100V
  • TS iron cartridge: 101mm length for AC100V
  • DCM iron cartridge: 145mm length for DC48V
  • DCS iron cartridge: 101mm length for DC48V
  • DCN iron cartridge: 101mm length for DC48V, sleeve with N2 supply

100% quality guarantee

  • 1:1 made according to Apollo Seiko solder tip.
  • Assembled with best quality heating element and connection terminal.
  • Every tip is tested by professional equipment during production and before delivery
  • Free replacement if quality issue

LEISTO V.S. APOLLO

Item LEISTO APOLLO
Heating up to 300ºC 6s 6s
Life circle 30,000~ 70,000 30,000~70,000
Cost $22~$28 $65~$85
Wattage 100~120W 100W
Lead Time 3~21 days More than 3 weeks
Soldering Tip Customization Yes
Flexible & Fast
Yes
Time consuming
Sample Availability Yes, Free of Charge Yes

Heating Speed

Soldering Tip Gallery

Apollo solder tip
Apollo Soldering Tips
Apollo Seiko Soldering Tips
Apollo Solder Tips

Features of Apollo Seiko Soldering Tips:

  • Designed to meet Lead free soldering requirements.
  • A high precision themocouple is built in to the apex of the iron tip, a minimal temperature drop can be quickly detected and recovered, temperature can reach 300° C within 6 seconds.
  • Quick change cartridge type iron provides for consistent location and  height adjustment with each tip change.

Reach 300℃ in 7 seconds

Leisto’s replacement Apollo Seiko solder tips can reach 300℃ within 7 seconds (while original tip reaches the same temp. in 6 seconds), the temp. increase to a higher than preset number and then automatically calibrate to preset temperature.

Reliable Life and Stable Temperature

Leisto soldering tips for Apollo Seiko automated soldering machine, have been tested, approved and used by global 500 companies, public companies, private companies, joint venture companies, etc.

The life can reach up to 85% of Apollo Seiko genuine tip.

Temperature Difference: +/- 15℃

Customizable Soldering Tips for Apollo Seiko

Leisto is able to custom made any size of  soldering tips for Apollo Seiko robots as per customer’s requirements. We can also provide consultant service to help you remake the solder tips to fit your working applications.

Cut 2/3 to 3/4 cost

Cut the cost without sacrifice quality! We offer favorable price according to the order quantity and you can save up to 3/4 cost than current procurement.

Free Sample

Get the sample to test, buy only when you are satisfied with the quality.
