Automatic tape dispenser

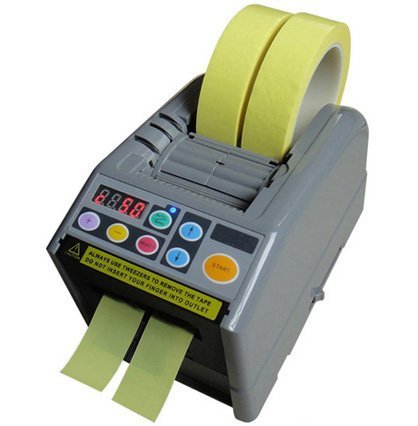

ZCUT-9 automatic tape dispenser assembles with 2 sensors which make cutting 2 tape rolls available. It has safety guard system to prevent activation of the cutter when foreign objects are present (fingers, tools, etc.)

Fit for cutting adhesive tape and non-adhesive tape.

  • Fit any size of tapes without bobbins.core.
  • Cut length from 5 mm to 999 mm.
  • Safety guard to prevent accidental injury.
  • Memory function enables to save six different lengths, the operators can switch the preset length and begin to feed & cut automatically.
  • Enable to cut Protection Film, Copper Foil, Aluminum Foil, Insulation material and more.
  • Enable to hold the film or tape by using Flexible Tape Support.
  • Preset and Loop counter functions.
  • Dual sensor enables to cut 2 rolls at a time.

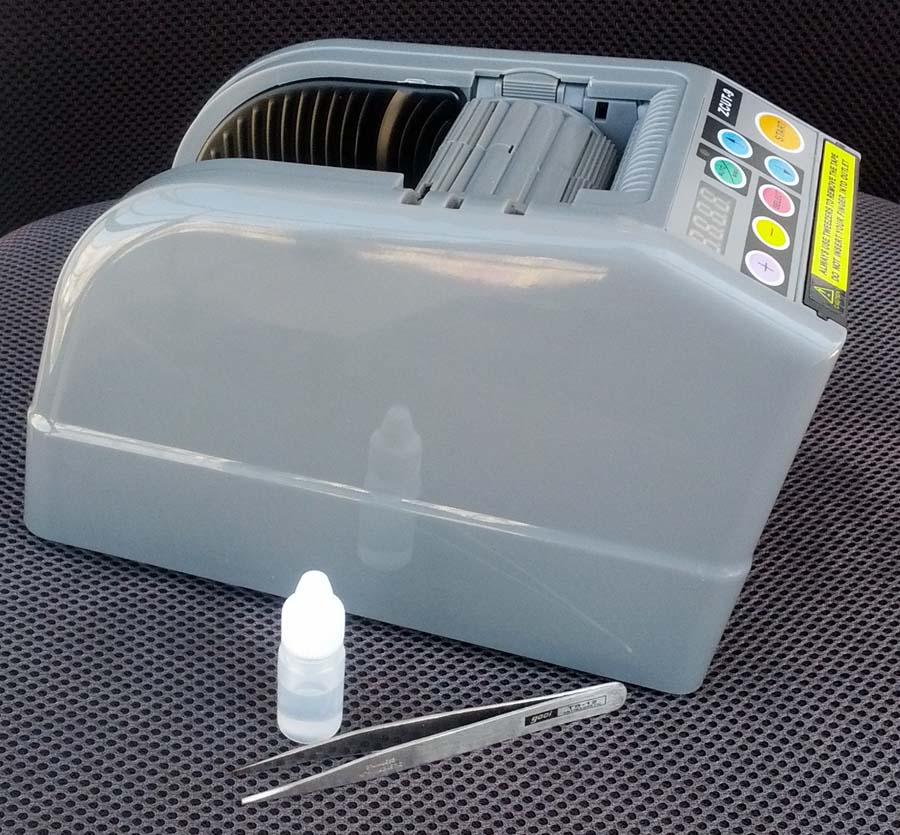

  • Build-in Tweezers, Oil, and Separator.

Specifications

Accept Tape Width Tape Cutting Length Accept Tape Inner Diameter Accept Tape Outer Diameter
6~60 mm 5~999 mm Any 300 mm

Dimension: 116(W)*140(D)*213(H)mm / Power Consumption: 40W / Voltage: AC220V/50Hz or AC110V/60Hz / Net Weight: 2.8 KGS

Video

Cut tape with stripper holder
